ReefBreeders Edge 63
ReefBreeders Edge 63ReefBreeders Edge 63
ReefBreeders

ReefBreeders Edge 63

$599.99
Special order: ships in an estimated 10–20 business days

Special order: Reef Effect orders this product from the supplier before shipping it to you. Estimated dispatch is 10–20 business days after ordering. Transit time is additional.

Shipping: $49 flat rate. Shipping is charged once per shipping group in your order: $19 for accessories and additives, $49 for lighting, and $69 for tanks and large equipment. If your order includes more than one group, the applicable charges are added together. Livestock and merchandise have separate shipping charges.

The Edge 63 is a 150-watt LED bar that puts concentrated light where you aim it. Run it on its own over a reef or planted tank, or mount it to a Meridian to add light at the front and back of the tank.

In the box

What's included

  • Edge 63 BarSpectrum of choice
  • Power Supply150 watts
Setup

Two ways to use it

On its own

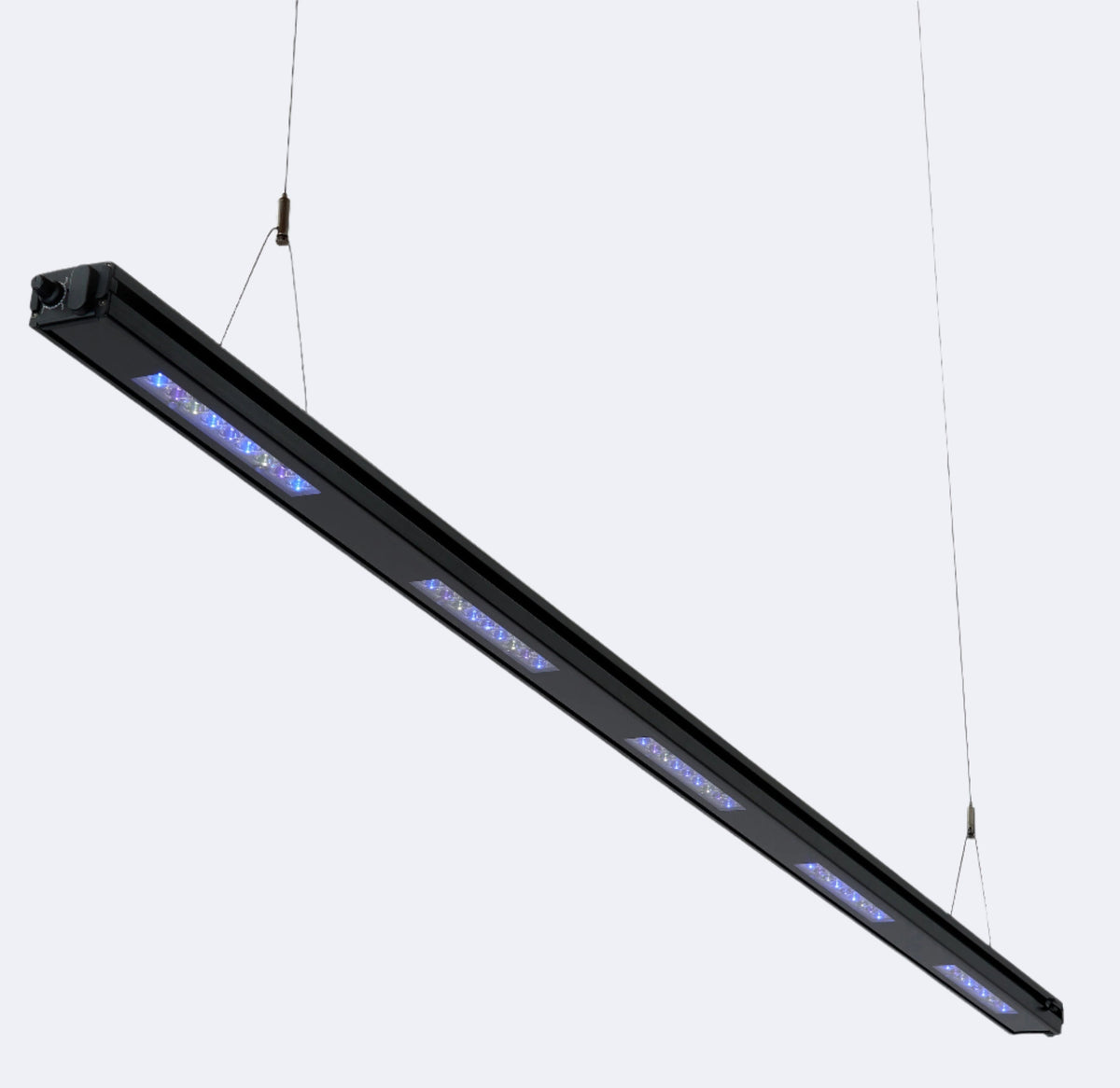

Adjustable M6 bolts on top of the case let you hang the bar, or fit it to back of tank mounts or a T-track. Mounted 10 to 14 inches above the waterline, it covers 72 inches of length with up to 6 inches of front-to-back spread on the included optics.

With a Meridian

Edge Articulating Mounts attach the bar to the Meridian's front or rear track, so you can angle it in toward the rockwork or out toward the glass. For power, either run the Meridian and the bar together from a larger power supply with a daisy chain cable, or keep each light on its own supply, the same setup the Meridian 63 bundle uses.

Mounting hardware is sold separately, including hanging wires and Edge Articulating Mounts. Buying a Meridian too? The Meridian Edge Bar Bundles come with the mounts and power setup already worked out.

Optics

Choose your spread

Included

Edge OHM Focus · 45°

  • Up to 6 inches of front-to-back spread
  • Reaches tanks up to 48 inches deep
  • Mount 10 to 14 inches above the waterline
Sold separately

Edge OHM Balance · 80°

  • Up to 10 inches of front-to-back spread
  • Reaches tanks up to 36 inches deep
  • Same 10 to 14 inch mounting height
Spectrum

Choosing a spectrum

Four spectra, each running two independent channels, with the LED cluster shown repeating along the length of the bar.

Reefer 14K

White, blue, and UV
  • A balanced spectrum of white, blue, and UV
  • A natural look that benefits both corals and fish
  • The only reef spectrum of the three that includes white LEDs
Reefer 14K cluster

Choose this if you want a natural look that flatters fish as well as coral.

Also worth a look: Royal Ice or UV/Blue Hybrid, if you want more color.

Royal Ice

Royal blue and cool blue
  • A blend of royal blue and cool blue
  • Tuned for maximum fluorescence and color pop
  • No white LEDs, so it adds nothing white to whatever light it's paired with
Royal Ice cluster

Choose this if fluorescence and color pop are what you are after.

Also worth a look: Reefer 14K, if you would rather keep a natural look.

UV/Blue Hybrid

Royal blue, near-UV, violet, and indigo
  • A mix of royal blue, near-UV, violet, and indigo
  • Chosen to enhance coral coloration and stimulate growth
  • Balances against the extra white LEDs in the Meridian's Shallow Reef layout
UV/Blue Hybrid cluster

Choose this if coloration and growth lead your priorities.

Also worth a look: Reefer 14K, if you want a more natural look.

Freshwater

Neutral, warm, and cool white with cool blue
  • Optimized for aquatic plant growth
  • A blend of 5.5K neutral white, 3.5K warm white, 7.5K cool white, and 465nm cool blue
Freshwater cluster

Choose this if you are lighting a planted freshwater tank.

Control

App control, with a manual controller built in

The ReefBreeders app

Two-channel control up to 100% output, with schedules and smooth sunrise and sunset ramps. Connect over 2.4GHz WiFi for cloud access from anywhere, or over Bluetooth straight from your phone. They are separate modes, so you choose one at setup. Switching later means resetting the bar with a magnet key.

The built-in controller

No phone needed. The controller built into the bar runs the whole light as a single channel, up to 75% output, with 8, 10, or 12 hour timers.

Measurements

Specifications

Dimensions

Case L × W × H 63 × 2 × 1.35 in
160 × 5 × 3.4 cm
Overall lengthIncluding plug and manual controller 65.25 in / 165.7 cm
Height including bolts 1.53 in / 3.9 cm
Weight 6 lb / 2.72 kg

Coverage and optics

Recommended mounting heightAbove waterline 10–14 in / 25–35 cm
Coverage length 72 in / 183 cm
Front-to-back spreadEdge OHM Focus, included up to 6 in / 15 cm
Front-to-back spreadEdge OHM Balance, sold separately up to 10 in / 25 cm
Max tank depthEdge OHM Focus 48 in / 122 cm
Max tank depthEdge OHM Balance 36 in / 91 cm

Power and control

Max power drawIn the app 150 W
Max power drawOn the manual controller 112.5 W
Included power supply 150 W
Power input 1 port
AC power cord 6 ft / 1.8 m
DC cable, power supply to light 9.5 ft / 2.9 m
Wireless controlSeparate modes, selected at setup 2.4GHz WiFi or Bluetooth
App control 2 channels, up to 100%
Manual controllerBuilt in, with 8, 10, or 12 hour timers 1 channel, up to 75%

Mounting and build

Mounting boltsAdjustable, on top of the case M6 × 1.0mm
TracksFor Edge Articulating Mounts, sold separately Front and rear
Body Aluminum, black finish
Light 2 years
Power supply 1 year

The Edge lineup

Model Max draw Supply Coverage length
Edge 12 30 W 50 W 24 in / 61 cm
Edge 24 60 W 75 W 36 in / 91 cm
Edge 35 90 W 100 W 48 in / 122 cm
Edge 45 120 W 150 W 60 in / 152 cm
Edge 63 150 W 150 W 72 in / 183 cm
Premium SelectionCarefully selected by Reef Effect.
Secure PackagingPacked carefully for delivery.
Product details

Special order: Reef Effect orders this product from the supplier before shipping it to you. Estimated dispatch is 10–20 business days after ordering. Transit time is additional.

Shipping: $49 flat rate. Shipping is charged once per shipping group in your order: $19 for accessories and additives, $49 for lighting, and $69 for tanks and large equipment. If your order includes more than one group, the applicable charges are added together. Livestock and merchandise have separate shipping charges.

The Edge 63 is a 150-watt LED bar that puts concentrated light where you aim it. Run it on its own over a reef or planted tank, or mount it to a Meridian to add light at the front and back of the tank.

In the box

What's included

  • Edge 63 BarSpectrum of choice
  • Power Supply150 watts
Setup

Two ways to use it

On its own

Adjustable M6 bolts on top of the case let you hang the bar, or fit it to back of tank mounts or a T-track. Mounted 10 to 14 inches above the waterline, it covers 72 inches of length with up to 6 inches of front-to-back spread on the included optics.

With a Meridian

Edge Articulating Mounts attach the bar to the Meridian's front or rear track, so you can angle it in toward the rockwork or out toward the glass. For power, either run the Meridian and the bar together from a larger power supply with a daisy chain cable, or keep each light on its own supply, the same setup the Meridian 63 bundle uses.

Mounting hardware is sold separately, including hanging wires and Edge Articulating Mounts. Buying a Meridian too? The Meridian Edge Bar Bundles come with the mounts and power setup already worked out.

Optics

Choose your spread

Included

Edge OHM Focus · 45°

  • Up to 6 inches of front-to-back spread
  • Reaches tanks up to 48 inches deep
  • Mount 10 to 14 inches above the waterline
Sold separately

Edge OHM Balance · 80°

  • Up to 10 inches of front-to-back spread
  • Reaches tanks up to 36 inches deep
  • Same 10 to 14 inch mounting height
Spectrum

Choosing a spectrum

Four spectra, each running two independent channels, with the LED cluster shown repeating along the length of the bar.

Reefer 14K

White, blue, and UV
  • A balanced spectrum of white, blue, and UV
  • A natural look that benefits both corals and fish
  • The only reef spectrum of the three that includes white LEDs
Reefer 14K cluster

Choose this if you want a natural look that flatters fish as well as coral.

Also worth a look: Royal Ice or UV/Blue Hybrid, if you want more color.

Royal Ice

Royal blue and cool blue
  • A blend of royal blue and cool blue
  • Tuned for maximum fluorescence and color pop
  • No white LEDs, so it adds nothing white to whatever light it's paired with
Royal Ice cluster

Choose this if fluorescence and color pop are what you are after.

Also worth a look: Reefer 14K, if you would rather keep a natural look.

UV/Blue Hybrid

Royal blue, near-UV, violet, and indigo
  • A mix of royal blue, near-UV, violet, and indigo
  • Chosen to enhance coral coloration and stimulate growth
  • Balances against the extra white LEDs in the Meridian's Shallow Reef layout
UV/Blue Hybrid cluster

Choose this if coloration and growth lead your priorities.

Also worth a look: Reefer 14K, if you want a more natural look.

Freshwater

Neutral, warm, and cool white with cool blue
  • Optimized for aquatic plant growth
  • A blend of 5.5K neutral white, 3.5K warm white, 7.5K cool white, and 465nm cool blue
Freshwater cluster

Choose this if you are lighting a planted freshwater tank.

Control

App control, with a manual controller built in

The ReefBreeders app

Two-channel control up to 100% output, with schedules and smooth sunrise and sunset ramps. Connect over 2.4GHz WiFi for cloud access from anywhere, or over Bluetooth straight from your phone. They are separate modes, so you choose one at setup. Switching later means resetting the bar with a magnet key.

The built-in controller

No phone needed. The controller built into the bar runs the whole light as a single channel, up to 75% output, with 8, 10, or 12 hour timers.

Measurements

Specifications

Dimensions

Case L × W × H 63 × 2 × 1.35 in
160 × 5 × 3.4 cm
Overall lengthIncluding plug and manual controller 65.25 in / 165.7 cm
Height including bolts 1.53 in / 3.9 cm
Weight 6 lb / 2.72 kg

Coverage and optics

Recommended mounting heightAbove waterline 10–14 in / 25–35 cm
Coverage length 72 in / 183 cm
Front-to-back spreadEdge OHM Focus, included up to 6 in / 15 cm
Front-to-back spreadEdge OHM Balance, sold separately up to 10 in / 25 cm
Max tank depthEdge OHM Focus 48 in / 122 cm
Max tank depthEdge OHM Balance 36 in / 91 cm

Power and control

Max power drawIn the app 150 W
Max power drawOn the manual controller 112.5 W
Included power supply 150 W
Power input 1 port
AC power cord 6 ft / 1.8 m
DC cable, power supply to light 9.5 ft / 2.9 m
Wireless controlSeparate modes, selected at setup 2.4GHz WiFi or Bluetooth
App control 2 channels, up to 100%
Manual controllerBuilt in, with 8, 10, or 12 hour timers 1 channel, up to 75%

Mounting and build

Mounting boltsAdjustable, on top of the case M6 × 1.0mm
TracksFor Edge Articulating Mounts, sold separately Front and rear
Body Aluminum, black finish
Light 2 years
Power supply 1 year

The Edge lineup

Model Max draw Supply Coverage length
Edge 12 30 W 50 W 24 in / 61 cm
Edge 24 60 W 75 W 36 in / 91 cm
Edge 35 90 W 100 W 48 in / 122 cm
Edge 45 120 W 150 W 60 in / 152 cm
Edge 63 150 W 150 W 72 in / 183 cm
Special-order shipping

Reef Effect orders this product from the supplier before shipping it to you. Estimated dispatch is 10–20 business days after ordering. Transit time is additional. Shipping charges add together when your order includes different shipping groups. Livestock and merchandise have separate shipping charges.

Questions before ordering?

Contact Reef Effect before ordering if you need help with compatibility, care requirements, sizing, or product availability.
