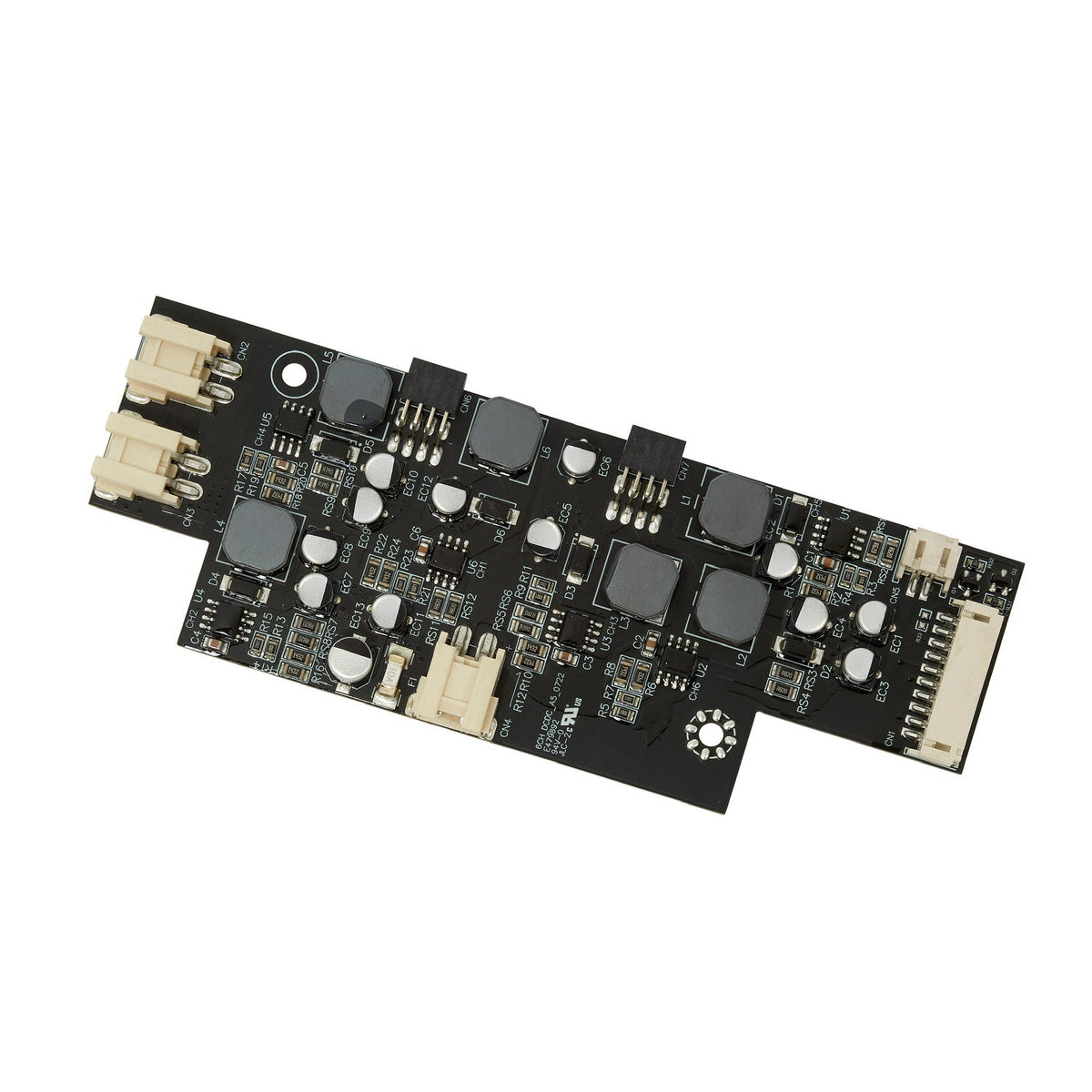

ReefBreeders Meridian Elite Driver Board
Special order: Reef Effect orders this product from the supplier before shipping it to you. Estimated dispatch is 10–20 business days after ordering. Transit time is additional.
Shipping: $19 flat rate. Shipping is charged once per shipping group in your order: $19 for accessories and additives, $49 for lighting, and $69 for tanks and large equipment. If your order includes more than one group, the applicable charges are added together. Livestock and merchandise have separate shipping charges.
Meridian Max Driver
The Meridian Max driver features updated components that deliver a much finer dimming range than the original Meridian drivers. Where the originals cut off at 1% power, the Max drivers dim as low as approximately 0.1% on each channel. That's 10x lower than before, making moonlight simulation far more realistic and sunrise/sunset ramps noticeably smoother and more gradual.
This is a direct replacement for the original Meridian driver. Unscrew/unplug the old one, plug/screw in the new one. The only extra step is carefully heating the wax seal on the wiring with a heat gun or hair dryer before disconnecting. No soldering, no cutting, no rewiring.
Sold individually.Each LED bank in your Meridian requires one driver. Order the quantity that matches your light:
| Meridian Model | Drivers Needed |
|---|---|
| Meridian 11 | 1 |
| Meridian 24 | 2 |
| Meridian 35 | 3 |
| Meridian 45 | 4 |
| Meridian 63 | 5 |
Specifications
- Dimensions:136mm x 50mm x 11.3mm
- Weight:~50g
- Output:Up to 75W per driver
- Minimum Dimming:~0.1% per channel
- Compatibility:All Meridian models (11, 24, 35, 45, 63)
What's Included
One (1) Meridian Max driver. Wiring and connectors from your existing light are reused.
Installation
Installation is straightforward but does require some care. Use a heat gun or hair dryer to soften the wax seal on the existing driver's wiring, disconnect the old driver, and plug in the new one. Installation time varies by model. A detailed install guide is coming soon.
Product details
Special order: Reef Effect orders this product from the supplier before shipping it to you. Estimated dispatch is 10–20 business days after ordering. Transit time is additional.
Shipping: $19 flat rate. Shipping is charged once per shipping group in your order: $19 for accessories and additives, $49 for lighting, and $69 for tanks and large equipment. If your order includes more than one group, the applicable charges are added together. Livestock and merchandise have separate shipping charges.
Meridian Max Driver
The Meridian Max driver features updated components that deliver a much finer dimming range than the original Meridian drivers. Where the originals cut off at 1% power, the Max drivers dim as low as approximately 0.1% on each channel. That's 10x lower than before, making moonlight simulation far more realistic and sunrise/sunset ramps noticeably smoother and more gradual.
This is a direct replacement for the original Meridian driver. Unscrew/unplug the old one, plug/screw in the new one. The only extra step is carefully heating the wax seal on the wiring with a heat gun or hair dryer before disconnecting. No soldering, no cutting, no rewiring.
Sold individually.Each LED bank in your Meridian requires one driver. Order the quantity that matches your light:
| Meridian Model | Drivers Needed |
|---|---|
| Meridian 11 | 1 |
| Meridian 24 | 2 |
| Meridian 35 | 3 |
| Meridian 45 | 4 |
| Meridian 63 | 5 |
Specifications
- Dimensions:136mm x 50mm x 11.3mm
- Weight:~50g
- Output:Up to 75W per driver
- Minimum Dimming:~0.1% per channel
- Compatibility:All Meridian models (11, 24, 35, 45, 63)
What's Included
One (1) Meridian Max driver. Wiring and connectors from your existing light are reused.
Installation
Installation is straightforward but does require some care. Use a heat gun or hair dryer to soften the wax seal on the existing driver's wiring, disconnect the old driver, and plug in the new one. Installation time varies by model. A detailed install guide is coming soon.
Special-order shipping
Reef Effect orders this product from the supplier before shipping it to you. Estimated dispatch is 10–20 business days after ordering. Transit time is additional. Shipping charges add together when your order includes different shipping groups. Livestock and merchandise have separate shipping charges.
Questions before ordering?
Contact Reef Effect before ordering if you need help with compatibility, care requirements, sizing, or product availability.
